SUA2200I-IN

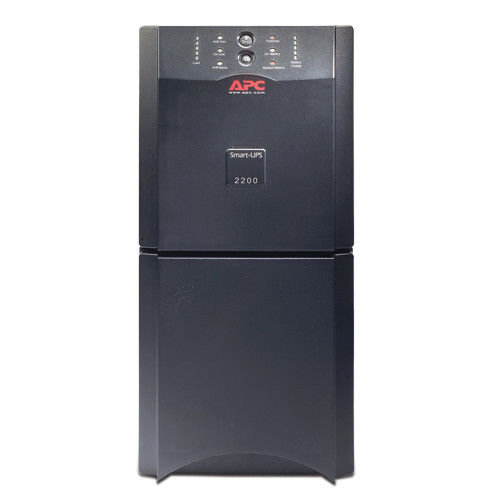

APC Smart-UPS 2200VA USB & Serial 230V, India specific
Includes: CD with software , USB cable , User Manual
Output
Output power capacity 1.98 KWatts / 2.2 kVA
Max Configurable Power (Watts) 1.98 KWatts / 2.2 kVA
Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load 90.0 %
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology Line Interactive
Waveform type Sine wave
Output Connections (8) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Transfer Time 2ms typical
Input
Nominal Input Voltage 230V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input voltage adjustable range for mains operation 151 - 302V
Efficiency at Full Load 90.0 %
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery RBC55
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Runtime View Runtime Graph, View Runtime Chart
Communications & Management
Interface Port(s) DB-9 RS-232 , SmartSlot
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating 365Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height432mm , 43.2CM
Maximum Width 196mm , 19.6CM
Maximum Depth 544mm , 54.4CM
Net Weight 50.91KG
Shipping weight 65.0KG
Shipping Height 700mm , 70.0CM
Shipping Width 380mm , 38.0CM
Shipping Depth 760mm , 76.0CM
Units per Pallet 3.0
APC Smart-UPS 2200VA USB & Serial 230V
Environmental
- Operating Temperature 0 - 40 °C
- Operating Relative Humidity 0 - 95 %
- Operating Elevation 0-3000meters
- Storage Temperature -15 - 45 °C
- Storage Relative Humidity 0 - 95 %
Storage Elevation 0-15000meters
- Audible noise at 1 meter from surface of unit 45.0dBA
- Online thermal dissipation 275.0BTU/hr
Sustainable Offer Status
- RoHS Compliant
- REACH REACH: Contains No SVHCs
SUA2200I-IN Features
APC Smart-UPS 2200VA USB & Serial 230V, India specific
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Smart-UPS Features & Benefits
Marketing Features
- Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
- Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
- Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
- Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Availability
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
- Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
- LED status indicators
Quickly understand unit and power status with visual indicators.
- Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Network manageable
Provides remote power management of the UPS over the network.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
- Serial connectivity
Provides management of the UPS via a serial port.
Adaptability
- Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Serviceability
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Resettable circuit breakers
Enables a quick recovery from overload events.
- Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
