Up to 7th Generation Intel® Core™ i7 processor
Up to Windows 10 Pro OS
32 GB DDR4 2400 MHz SoDIMM
Up to 2 x 1 TB M.2 NVMe SSD
NVIDIA® Quadro® P600
Ports & Slots: 6 USB 3.0 (1 always-on), 4 mini DisplayPorts, Ethernet, 2 DisplayPorts, microphone jack, audio jack
Dimensions (W x D x H): 1.4” x 7.1” x 7.2”
Starting at 2.9 lbs / 1.3 kg
1L footprint, ISV-certified workstation
Professional graphics, powerful technology
Supports up to 6 independent displays
Tech Specs
Processor Up to 7th Generation Intel® Core™ i7 vPro™
Operating System Up to Windows 10 Pro (64 bit)
Graphics NVIDIA® Quadro® P600
Multiple Display Support Up to 6 displays
Memory 32 GB DDR4 2400 MHz SoDIMM
Storage 2 x 1 TB M.2 NVMe SSD
WiFi Intel® Dual Band Wireless ac 8265 + Bluetooth 4.2
Power Supply 135W Adapter
Dimensions (W x D x H) 1.4” x 7.1” x 7.2” / 35.6 mm x 180.3 mm x 182.88 mm
Weight Starting at 2.9 lbs / 1.3 kg
I/O (Input/Output) Ports Front:
2 x USB 3.0 (1 always-on)
microphone jack
audio jack
Rear:
4 x mini DisplayPorts
Security lock slot
Ethernet
2 DisplayPorts
3 x USB 3.0 (1 supports Smart Power On via Alt-P)
WiFi antenna slot
Power adapter connector
Green Certifications • GREENGUARD®
EPEAT® Gold
Energy Star
ISV Certifications • Autodesk AutoCAD
Autodesk Inventor
Autodesk Revit
AVEVA PDMS
Bentley MicroStation
Dassault SOLIDWORKS
Nemetschek Vectorworks
PTC Creo
Siemens NX, Teamcenter, Tecnomatix
Siemens Solid Edge
Specifications may vary depending upon region.

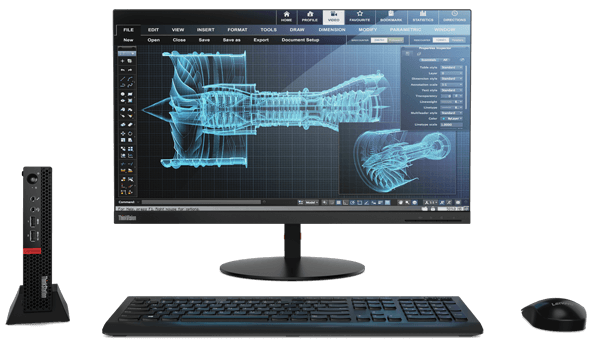

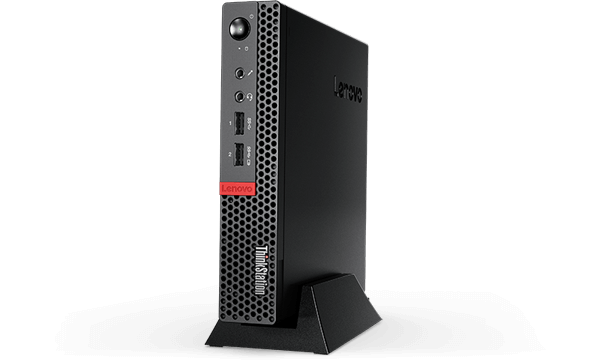

ThinkStation P320 Tiny
Packs a Punch
At less than 3 pounds, the ThinkStation P320 Tiny is the world’s smallest workstation. But don’t be fooled by the size. With the latest Intel® processing technology, NVIDIA® professional graphics, ISV-certification, and blazing-fast storage options, this Tiny delivers a knockout performance.
Tiny Footprint, Big Statement
At 96% smaller than a traditional workstation, the ThinkStation P320 Tiny is extremely compact. It’s also very versatile and can fit just about anywhere, horizontally or vertically —mount it on a wall, under a desk, or even behind a monitor to create a modular all-in-one.
Realize Your Potential
Supporting up to six independent displays, this tiny workstation is ideal for everything from finance to design, from education to healthcare. ISV-certification makes ThinkStation P320 Tiny a top choice across industries, ensuring a consistent and accurate software experience. What’s more, with the Lenovo Performance Tuner application, you can easily optimize system settings and maximize performance.
Leave Your Screwdrivers Behind
With tool-free accessibility, the ThinkStation P320 Tiny is every IT tech’s dream. Thanks to a simple, efficient design, system maintenance and upgrading is a cinch. The bottom door opens for access to memory and storage, and the wireless LAN antenna is external.
Help Is Just a Keystroke Away
With high-performance Intel® Core™ vPro™ processors, your IT team can remotely access your fleet of workstations from anywhere. They can easily roll out software upgrades or fixes to all systems on the network, saving on both management costs and desk-side visit time. And with a wireless power switch, the ThinkStation P320 Tiny can even be turned on and off remotely.
Built for Business—Tested for Life
Beaten, battered, and bruised, ThinkStation P320 Tiny passes 12 extreme military-stress tests and 200 rigorous quality checks. From enduring arctic temperatures of -20 degrees C, to desert heat of 60 degrees C, this device can more than handle the knocks of everyday life.
