6th Generation Intel® Core™ i7 processor
8 GB DDR4-2400 non-ECC registered SDRAM (1 x 8 GB)
NVIDIA® Quadro® M620 (2 GB)
· Intel® Core™ i7-6700 Processor with Intel HD Graphics 530 (3.4 GHz, up to 4 GHz with Intel Turbo Boost, 8 MB cache, 4 cores)
· 3-year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
· 8 GB DDR4-2400 non-ECC registered SDRAM (1 x 8 GB)
Starting at 2.04 kg

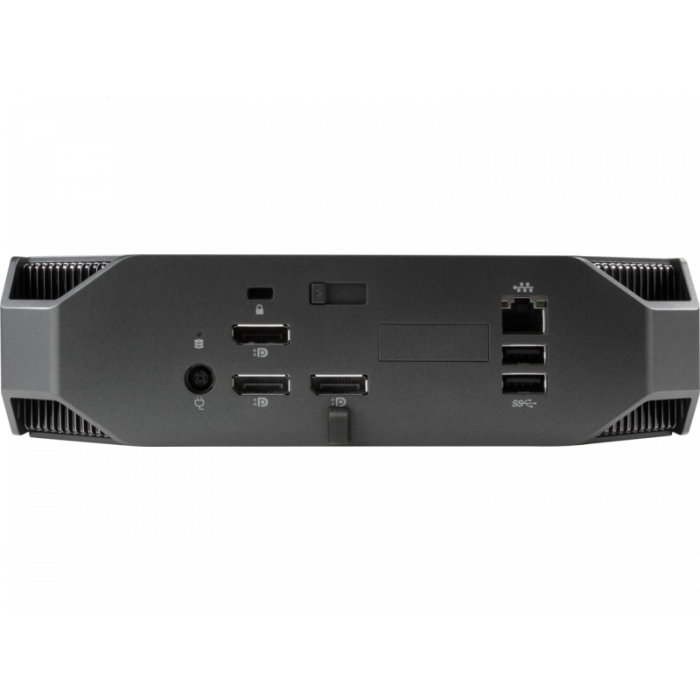

HP Z2 Mini G3 Workstation
Specifications
Processor family 6th Generation Intel® Core™ i7 processor
USAGE
Perfect for Business
Usage Performance computing
PROCESSOR
Processor type Intel Core i7
Processor speed 3.4 GHz
Number of processors 1
SOFTWARE
Operating system Windows 7 Professional 64
GRAPHIC SUBSYSTEM
Graphics NVIDIA Quadro
Graphics NVIDIA® Quadro® M620 (2 GB)
Graphics Discrete
FEATURES
Features Bluetooth
BATTERY AND POWER
Power 200 W 89% efficient, wide-ranging, active PFC (external)
WARRANTY
Warranty 3-year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
CONNECTIVITY AND COMMUNICATIONS
Network interface Integrated Intel® I219LM PCIe Gigabit controller
Ports 2 USB 3.0 (1 charging); 1 line in
Expansion slots 1 M.2 PCIe Gen3 x1
Ports note Premium includes: 4 DisplayPort™ 1.2 outputs from NVIDIA® Quadro® M620 graphics, 2 USB 3.0 ports, 2 USB 3.1 G1 Type-C™.
Ports 1 RJ-45; 1 serial; 1 audio-in; 2 USB 3.0; 3 DisplayPort™ 1.2
Network interface type LAN
Network interface type WLAN
Network interface Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) non-vPro™ Wi-Fi and Bluetooth® 4.2 Combo
I/O Port location Side
I/O Port location Back
SYSTEM COMPONENTS
Form factor Mini Form Factor
MEMORY
Memory slots 2 SODIMM
Memory, standard 8 GB DDR4-2400 non-ECC registered SDRAM (1 x 8 GB)
DRIVES
Internal drive bays One 2.5"
Storage type HDD
DIMENSIONS
Minimum dimensions (W x D x H) 21.6 x 21.6 x 5.8 cm
Dimension note (metric) Standard desktop orientation
MULTIMEDIA AND INPUT DEVICES
Pointing device HP USB Optical Mouse
Keyboard HP USB Business Slim Keyboard
Audio Integrated Realtek HD ALC221-VB audio
SOFTWARE AND APPLICATIONS
Software HP Remote Graphics Software (RGS)
SERVICES
Services (Care Pack) Receive 5 years of next business day onsite repair from an HP-qualified technician for your computing device, if the issue cannot be solved remotely. For more information on Care Pack services, please visit www.hp.com/go/cpc.
COMPATIBILITY
Accessories HP PC Mounting Bracket for Monitors - N6N00AA; HP Z Turbo Drive G2 512GB MLC (Z2 Mini) - Y7B59AA; HP Z22n Professional Display - K7B99A8; HP Z27s Professional Display - J3G07A8; CAD Mouse - M5C35AA; HP 5 year Next Business Day Onsite with Defective Media Retention Pack - U1G57E;
DISPLAY SPECIFICATIONS
Compatible displays All HP Z Displays and HP DreamColor Displays are supported.
Next-level power
Get server-grade power in a remarkably small device. NVIDIA® Quadro® graphic keep up with the speed of your creativity.
Designed for the workspace of the future
We packed workstation performance into a mini PC with a design that will turn heads. Our most flexible and most beautiful workstation ever—perfect for every office environment.
Industry-leading reliability
Tech issues should never hold you back. The Z2 Mini is tested for 368,000 hours and certified for the most popular CAD software. Feel confident using a workstation influenced by over 30 years of engineering and backed by a 3-year standard limited warranty.
